Turkey Bentonite exporter

Turkey bentonite powder

What is Turkey Bentonite?

Turkey Bentonite is a water-swellable clay which, upon contact with water exposed and making it ideal for protecting formations from invasion by drilling fluids.

Why Bentonite is widely use in drilling operations?

  1. Fluid Loss Control: Bentonite exhibits excellent fluid loss control properties, helping to stabilize drilling fluids and prevent excessive loss of fluids into the formation. This is crucial for maintaining wellbore stability and preventing costly issues such as formation damage.
  2. Hole Cleaning: Bentonite enhances hole cleaning by suspending drilled cuttings in the drilling fluid. This prevents cuttings from settling at the bottom of the wellbore, ensuring efficient drilling operations and minimizing the risk of blockages.
  3. Lubrication: Bentonite acts as a lubricant, reducing friction between the drill string and the formation. This helps to prolong the life of drilling equipment and optimize drilling efficiency.
  4. Wellbore Stability: By forming a protective barrier on the walls of the wellbore, bentonite helps to stabilize the formation and prevent collapse or caving. This is essential for maintaining well integrity and ensuring the success of the drilling operation.
  5. Completion: Bentonite use in a wide range of drilling applications, including water-based drilling fluids, oil-based drilling fluids, and even as a sealant in well completion operations.

Different standard for bentonite API-13A and OCMA

The American Petroleum Institute (API) Standard 13A and the Oil Companies Materials Association (OCMA) specifications outline the standards for bentonite used in drilling operations:

  1. API Standard 13A: This standard provides specifications for drilling-grade bentonite, including requirements for physical properties, chemical composition, and performance characteristics. It ensures that bentonite used in drilling fluids meets the necessary quality standards to effectively perform in oil and gas drilling operations.
  2. OCMA Specifications: The Oil Companies Materials Association (OCMA) also sets forth specifications for bentonite used in drilling fluids. These specifications may complement or align with API Standard 13A and provide additional guidelines or requirements specific to the needs of oil companies and drilling contractors.

Both API Standard 13A and OCMA specifications play a crucial role in ensuring the quality and performance of bentonite used in drilling fluids. Adhering to these standards helps maintain drilling efficiency, wellbore stability, and overall drilling success in the oil and gas industry.

Role of Bentonite in Preventing Wellbore Instability

bentonite drilling

Wellbore instability is a significant issue encountered during drilling operations. It can lead to various operational complications such as stuck pipe, sidetracking, or even well abandonment. Bentonite, due to its unique properties, plays a pivotal role in preventing wellbore instability.

  1. Forming a Mud Cake: When drilling fluid containing bentonite is exposed to the wellbore, it creates a mud cake – a layer of concentrated solid particles on the wellbore’s wall. This mud cake acts as a shield, preventing the further invasion of drilling fluid into the formation and maintaining the wellbore’s stability.
  2. Control of Fluid Loss: Bentonite’s high swelling capacity allows it to seal tiny pores in the formation, which results in a significant reduction in fluid loss. Less fluid invasion into the formation means less disturbance to the formation’s structure, thereby preventing wellbore instability.
  3. Maintaining Borehole Shape: Bentonite, due to its plasticity, can adapt to irregularities in the borehole’s shape. By filling up these irregularities, bentonite helps maintain a smooth and regular borehole shape, which is key to preventing instability.
  4. Preventing Formation Damage: Turkey Bentonite’s chemical inertness ensures minimal reactivity with the formation material. This attribute is significant as chemical reactions between the formation and drilling fluid can lead to changes in formation properties, potentially causing instability.
  5. Pressure Control: Bentonite-based drilling fluids provide the necessary hydrostatic pressure in the wellbore to balance the pressure of the formation fluids. Proper pressure control is crucial in preventing wellbore collapse or blowout scenarios.
  6. Suspension of Cuttings: Bentonite’s high viscosity when in a gel state helps keep the drill cuttings in suspension. This property prevents cuttings from settling at the bottom of the wellbore, which could lead to stuck pipe and other drilling complications.

Thus, the role of Bentonite in maintaining wellbore stability cannot be overstated. By offering several benefits like formation of a sealing mud cake, control of fluid loss, pressure control, and suspension of cuttings, Bentonite helps in ensuring the smooth progress of drilling operations and minimizing the risks associated with wellbore instability.

Bentonite vs. Other Drilling Mud Materials

In drilling operations, various materials can be used to form the base of drilling fluids or muds. Two of the most common are bentonite and barite, but others like synthetic polymers are also used. Let’s compare these drilling mud materials to understand why bentonite often emerges as the top choice.

  • Bentonite vs. Barite: Both are commonly used in drilling operations, but they serve different purposes. Barite is a heavy mineral used to increase the density of drilling fluids to control formation pressures. Bentonite, on the other hand, is used for its viscosity and swelling properties, which help in carrying cuttings to the surface and stabilizing the borehole. While both are crucial, bentonite’s multifunctional characteristics often make it a more essential component of drilling fluids.
  • Bentonite vs. Synthetic Polymers: Synthetic polymers, like polyacrylamides, are also used in drilling fluids due to their viscosity-enhancing properties. However, polymers can be more expensive and lack some of the properties of bentonite, such as the ability to form a filter cake for borehole stability. Additionally, some polymers can be susceptible to thermal degradation, a problem that is not common with bentonite.
  • Bentonite vs. Other Clay Minerals: Other clay minerals, such as attapulgite and sepiolite, can also be used in drilling fluids. While these minerals can provide viscosity and filtration control, they generally do not have the same level of swelling capacity as bentonite. This limits their ability to seal pores in the formation and reduce fluid loss.
  • Bentonite vs. Organic Clays: Organic clays, like lignites, are sometimes used in drilling muds to help control fluid loss. However, these materials do not provide the same level of borehole stabilization as bentonite, and they can also cause issues with mud disposal due to their organic nature.

Use of Bentonite for Well Drilling

While bentonite plays a vital role in drilling operations, it’s important to also consider its environmental impact and the necessary safety measures required for its use.

Environmental Impact

  • Water Quality: Bentonite-based drilling muds, if not properly managed, can infiltrate into water bodies during drilling operations, potentially affecting the water quality. The high levels of suspended solids from bentonite can cause harm to aquatic life.
  • Soil Quality: Spills or leaks of drilling muds can cause soil contamination, affecting soil quality and possibly plant life in the surrounding area.
  • Waste Management: The disposal of spent bentonite-based drilling muds poses an environmental challenge. If not disposed of properly, it can lead to further soil and water contamination.

Safety Measures

To mitigate these potential environmental impacts, several safety measures and best practices can be adopted:

  • Mud Containment: Using well-designed containment systems for drilling fluids to prevent leaks and spills is crucial. This includes using mud pits lined with impermeable materials or using closed-loop systems that separate cuttings from the mud for safe disposal.
  • Waste Management: Proper treatment and disposal of spent drilling mud is essential. This could include solidification before disposal, recycling for further use, or even repurposing, such as in construction or land reclamation projects.
  • Emergency Response Plans: Having a robust response plan in place for potential leaks, spills, or other emergencies can greatly minimize environmental harm. Regular safety drills and training for workers can ensure quick and effective responses.
  • Compliance with Regulations: Compliance with environmental regulations and guidelines set by relevant authorities is essential. This could include measures like conducting environmental impact assessments before drilling operations and obtaining the necessary permits for drilling and waste disposal.
  • Use of Biodegradable Drilling Muds: Where possible, consider using biodegradable drilling muds or those with less environmental impact. While bentonite itself is natural and non-toxic, the additives used in drilling muds can sometimes be harmful.

In conclusion, while bentonite is an invaluable resource in well drilling, it’s important to use and manage it responsibly to minimize its environmental impact. By implementing effective safety measures and adhering to environmental regulations, the drilling industry can achieve its operational goals while also protecting the environment.

Bentonite Usage for Well Drilling

bentonite API OCMA

As drilling operations evolve and environmental considerations become more significant, technology and innovation continue to influence the use of bentonite in well drilling. Here are a few areas where improvements and advancements are expected in the near future:

  1. Bentonite Enhancement Technologies: Researchers are focusing on improving the properties of bentonite to increase its efficiency in drilling operations. For instance, some studies are exploring the modification of bentonite using polymers and nanoparticles to improve its thermal stability and filtration control properties.
  2. Recycling and Reuse: As environmental regulations tighten, technologies that allow the efficient recycling and reuse of spent bentonite-based drilling muds are becoming more important. Advances in separation and cleaning technologies are expected to make the reuse of bentonite more cost-effective and environmentally friendly.
  3. Environmentally Friendly Alternatives: In the quest for greener drilling operations, the development of environmentally friendly alternatives to traditional bentonite-based drilling muds is ongoing. Biodegradable and non-toxic drilling fluids that still deliver the benefits of bentonite are expected to be an area of focus.
  4. Digital Technologies: The role of digital technologies in monitoring and managing drilling operations continues to grow. From real-time data collection and analysis to machine learning algorithms predicting the performance of drilling fluids, digital tools are set to revolutionize the drilling industry and the use of materials like bentonite.
  5. Advanced Testing Techniques: As the science behind drilling fluids evolves, so too will the techniques used to test and evaluate their performance. Advances in laboratory equipment and analytical methods will enable a deeper understanding of bentonite’s behavior under varying conditions, allowing for more precise formulations of drilling muds.

Meanwhile bentonite has been and continues to be an invaluable material for drilling wells. From its unique properties that aid drilling fluid formulation to its role in preventing wellbore instability, bentonite proves its indispensability in the drilling industry. This comprehensive overview delved into the applications, properties, and environmental impact of using Bentonite for drilling. It also highlighted ongoing research and future prospects, demonstrating that as technology evolves, the use of Bentonite for drilling wells will continue to adapt and advance.

Types of Bentonite

Several types of bentonite that any of them used in different industry, however one of the important fields which it uses a lot is drilling, so that our most export refers to this case. As the same property among all types of this mineral, we can say high absorption ability and to be inflation by water. Two usual types of this, are swelling and non-swelling which supply with two standers API and OCMA by our company. typically Types of bentonite are involve:

  • Sodium bentonite
  • Calcium bentonite
  • Magnesium bentonite
  • Potassium bentonite

Sodium bentonite, calcium bentonite, magnesium bentonite, and potassium bentonite are all different types of bentonite clay, each with unique characteristics and applications:

  1. Sodium Bentonite: Sodium bentonite is characterized by its high swelling capacity when mixed with water, making it ideal for sealing and waterproofing applications. It forms a tight, impermeable seal when hydrated, which is valuable in applications such as pond sealing, lining landfills, and plugging wells.
  2. Calcium Bentonite: Calcium bentonite, also known as non-swelling or non-swelling bentonite, has a lower swelling capacity compared to sodium bentonite. It is commonly used in industries such as foundry, construction, and agriculture. Calcium bentonite is valued for its ability to absorb toxins, making it useful in environmental remediation and purification processes.
  3. Magnesium Bentonite: Magnesium bentonite, also known as magnesium montmorillonite, contains a higher proportion of magnesium ions compared to other types of bentonite. It typically exhibits good swelling properties and is often used in applications where high viscosity and suspension properties are required, such as in drilling fluids for oil and gas exploration.
  4. Potassium Bentonite: Potassium bentonite contains a higher proportion of potassium ions and is known for its unique properties, including high cation exchange capacity and thermal stability. It is commonly used in industries such as cosmetics, pharmaceuticals, and wastewater treatment, where its adsorption and binding capabilities are valuable.

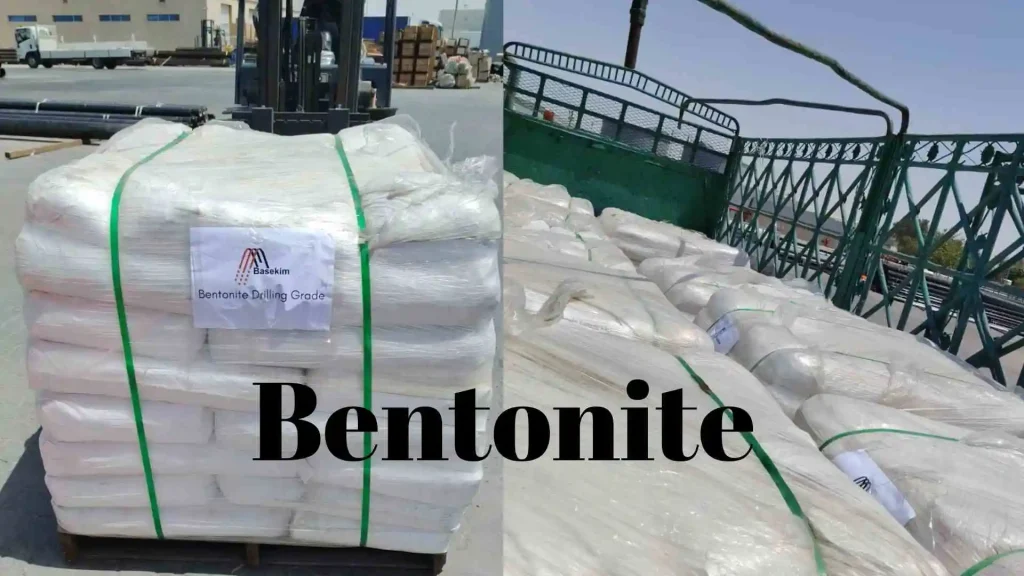

Bentonite packing

BASEKIM company, guaranteed selling and delivery of any type of bentonite with every packing, refers to customer requirement over the world. Our packing types involves various weight ranges from 15 kg bags on wooden pallets till 1 ton jumbo bags that all of these make transferring easy and also being safe for shipment. Our company is ready to take any offer list from each area on the world to send bentonite with any packing type.

Applications of bentonite

Bentonite is some mineral with high level uses in many fields and reasonable price, also is a good alternative instead of diatomite, used in: oil wells drilling, earth wells, making detergents, color hiding, making oil and its refinery, fabric softener, pet care, water refinery and clarification, oil absorbent, sewage drums, dam making, soil sustainability, pets food enrichment, drugs, medical and lots other more applications.

Spec of Bentonite

API

PropertyValue
Physical StateFree Flowing Powder
Moisture ContentMax 10%
Viscometer Dial reading at 600 r/minMin 30
Yield Point/Plastic Viscosity RatioMax 3
Filtrate VolumeMax 15.0 cm^3
Residue Greater than 75 Microns or 200 MeshMax 4.0%

OCMA

ParameterTest Method/StandardRequired Value
Moisture ContentHalogen 150°C≤ 15%
Grain SizePassing 125 µm dry sieve≥ 95% < 125 µm
Specific Density≈ 2300 kg/m3
Bulk Density≈ 900 kg/m3
600 Reading*Fann 35A Viscometer45 – 55
Yield Point*Fann 35A Viscometer22 – 32
30 min Fluid Loss*API Filter Press≤ 17 ml

What is high yield bentonite?

High yield bentonite helps maintain wellbore stability by providing excellent suspension properties, preventing solids from settling and ensuring uniform fluid distribution throughout the wellbore. This is crucial for preventing wellbore collapse and maintaining drilling integrity, especially in challenging geological formations.
