Organophilic lignite comes from lignite coal and then undergoes a chemical treatment so it can work effectively with oil-based and synthetic drilling fluids. To achieve this, manufacturers treat the lignite with amine compounds, often using quaternary amines. As a result, organophilic lignite resists water and blends easily in non-water-based drilling systems. Because of these features, it plays an important role in oil and gas drilling operations.
Key Properties of Organophilic Lignite
Hydrophobic Nature: Repels water, enabling better compatibility with oil-based muds.
Thermal Stability: Functions effectively in high-temperature conditions exceeding 400°F.
Chemical Stability: Remains inert with other fluid components.
Adsorptive Capability: Adsorbs organic solvents, enhancing mud rheology.
Shale Inhibition: Reduces clay swelling and stabilizes boreholes.
Applications of Organophilic Lignite
Oil-based and synthetic-based drilling mud systems
High-pressure, high-temperature (HPHT) wells
Shale formations with reactive clays
Areas requiring improved emulsion stability
Environments where Gilsonite or asphalt use is restricted
How Organophilic Lignite Works in Drilling Fluids
Organophilic lignite serves multiple critical roles in drilling fluid systems:
1. Filtration Control
It reduces High-Temperature High-Pressure (HTHP) filtrate loss by forming a resilient filter cake on the borehole wall.
2. Shale Stabilization
Prevents interaction between clay-rich formations and drilling fluids, reducing swelling and maintaining borehole integrity.
3. Fluid Loss Prevention
Limits mud invasion into the formation, minimizing damage and improving well productivity.
4. Emulsion Enhancement
Supports the stability of water-in-oil emulsions and increases overall drilling fluid performance.
5. Lubrication
Reduces torque and drag on drill strings, promoting smoother and more efficient drilling operations.
Specification of Organophilic Lignite
| Property | Typical Range |
|---|---|
| Moisture Content | Less than 10% |
| Ash Content | Below 15% |
| Solubility | Soluble in organic solvents |
| Particle Size | 20 – 100 microns |
| Organic Content | High, due to amine treatment |
| Thermal Stability | Above 400°F |
| Toxicity | Non-toxic when handled properly |
Recommended Dosage
HTHP Filtrate Control: 1–10 lb/bbl (2.85–28.5 kg/m³)
Emulsion Stability: 2–15 lb/bbl (5.7–42.75 kg/m³)
Exact dosage depends on drilling conditions, mud type, and performance goals

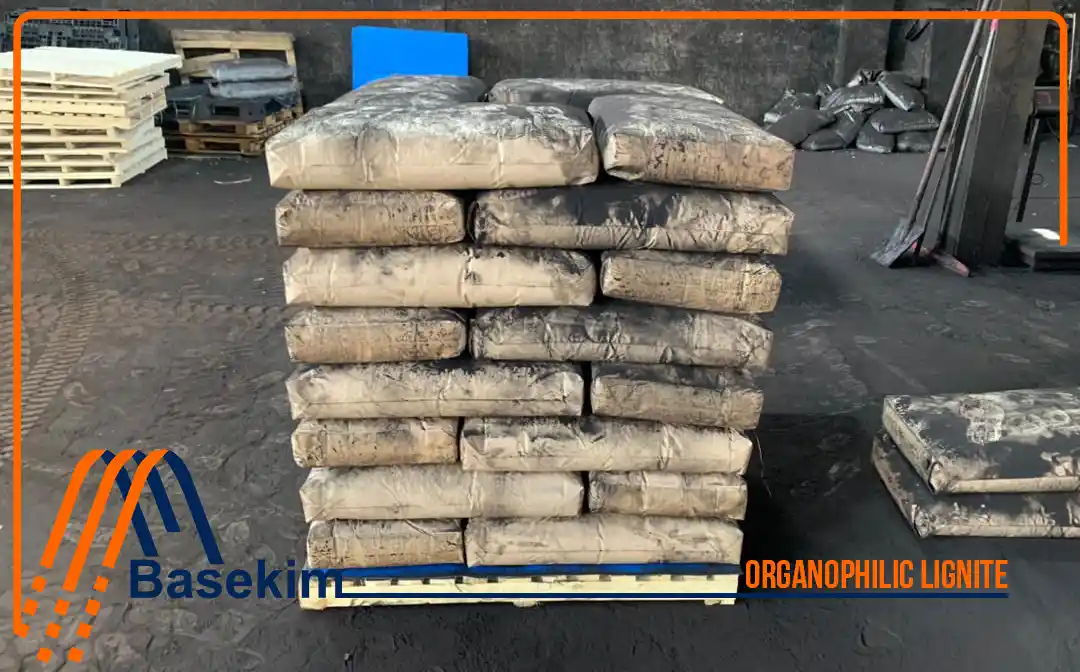

Packaging
Organophilic lignite is typically packed in 25 kg multi-paper bags. Moreover, the bags are placed on pallets to ensure safe and efficient transport and storage.
How is Organophilic Lignite Made?
The production process includes:
Mixing lignite with hot water and sodium hydroxide.
Separately preparing a solution of hydrochloric acid and partial amide compound.
Combining both mixtures and drying the slurry.
Grinding into a fine powder for use in drilling muds.
This chemical treatment enhances its oil affinity and thermal stability.
Advantages of Organophilic Lignite
To begin with, organophilic lignite mixes easily with oil-based drilling systems. Additionally, it effectively controls high-temperature high-pressure (HTHP) filtrate loss. Moreover, it remains compatible with all types of oil and synthetic muds. As drilling temperatures rise, it also enhances emulsion stability. Finally, it serves as an effective alternative to Gilsonite and asphalt in various drilling applications.
Environmental and Safety Considerations
Organophilic lignite is considered safe and environmentally friendly when used as directed. Follow all applicable handling, storage, and disposal guidelines to ensure minimal environmental impact.
Frequently Asked Questions (FAQs)
Q1: Is organophilic lignite suitable for all drilling operations?
A: It is primarily used in oil- and synthetic-based systems, not in water-based muds.
Q2: Can it withstand high temperatures?
A: Yes, organophilic lignite is stable at temperatures above 400°F.
Q3: How is it introduced into the mud system?
A: It should be gradually mixed while circulating the drilling mud to ensure uniform dispersion.
Q4: What’s the shelf life?
A: Store in a cool, dry place as per manufacturer guidelines for optimal shelf life.
Q5: Are there any safety concerns?
A: It is non-toxic under standard usage conditions, but always refer to the MSDS for specific precautions.
In Short
Organophilic lignite is a versatile drilling mud additive; in fact, it plays a key role in boosting drilling fluid performance. Furthermore, it helps maintain wellbore stability and lowers environmental risks throughout the drilling process. By incorporating this versatile product into oil-based drilling systems, operators can achieve greater efficiency, improved hole cleaning, and lower overall drilling costs.
