When people talk about road quality, roofing strength, or waterproofing materials, one important property often gets overlooked the ductility of bitumen. If you’ve ever wondered why some roads crack easily while others last for years, ductility is a big part of the answer. In simple terms, ductility tells us how far bitumen can stretch before it breaks. This matters a lot because materials that can stretch without cracking are better at handling traffic, weather changes, and pressure. In this article, you’ll get a clear, easy-to-understand explanation of what ductility of bitumen means, why it matters, and how it affects everyday construction projects.
What is the Ductility of Bitumen?
The ductility of bitumen refers to its ability to stretch or elongate before it snaps. It is measured in centimeters and shows how flexible the material is under stress.
Think of it like chewing gum. When you pull gum, it stretches a lot before breaking. Bitumen behaves in a similar way — but instead of chewing, it helps hold roads and structures together.
Simple Definition
Ductility is:
The distance bitumen can stretch
Measured before it breaks
A sign of flexibility and strength
The higher the ductility, the better the bitumen can handle movement and pressure.
Why is Ductility Important in Bitumen?
Ductility plays a key role in how well bitumen performs in real-life conditions.
1. Prevents Cracks in Roads
Roads expand and shrink due to temperature changes. If bitumen is not ductile enough, it will crack. High ductility allows it to stretch and adjust without breaking.
2. Improves Durability
Flexible bitumen lasts longer. It can handle heavy traffic loads and environmental stress better than brittle materials.
3. Better Waterproofing
Ductile bitumen forms a continuous layer that resists water penetration. This is important for roofing and sealing applications.
4. Handles Temperature Changes
In hot weather, bitumen softens. In cold weather, it hardens. Ductility helps balance these changes and prevents damage.

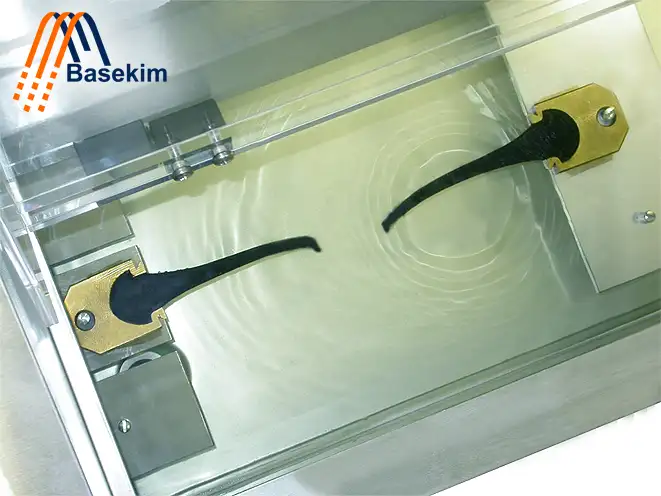

How is Ductility of Bitumen Tested?
To measure ductility, engineers use a standard test called the ductility test.
Test Process (Simple Explanation)
Bitumen is molded into a standard shape
It is placed in a water bath at a controlled temperature (usually 25°C)
The sample is slowly pulled apart
The distance it stretches before breaking is measured
Test Result
Measured in centimeters (cm)
Higher value = more ductile
- Lower value = more brittle
Example
100 cm = very flexible bitumen
20 cm = low ductility (not ideal for roads)
Typical Ductility Requirements for Bitumen Grades
Different bitumen grades have specific ductility requirements to ensure they perform well under real conditions like traffic load and temperature changes. These values help engineers pick the right material for each project. Below are common bitumen grades and their typical ductility requirements:
Minimum ductility: 100 cm at 25°C
One of the most commonly used grades for road construction
Minimum ductility: 100 cm at 25°C
Ideal for cooler climates due to higher flexibility
Minimum ductility: 40–50 cm at 25°C
Common in standard road construction
Minimum ductility: 25 cm at 25°C
Used in heavy traffic and high-temperature conditions
Polymer Modified Bitumen (PMB)
Minimum ductility: Varies (often 50–75 cm or more)
Offers enhanced flexibility and crack resistance
These ductility requirements ensure that each bitumen grade can stretch enough to handle stress without cracking. Choosing the right grade based on ductility helps improve road life, reduce maintenance costs, and ensure safer infrastructure.
Standard Requirements for Ductility
Different applications require different ductility values.
Typical Standards
Road construction: Minimum 50–75 cm
High-quality pavements: Above 100 cm
Industrial use: Depends on project needs
Standards may vary by country, but the idea is always the same — higher ductility means better performance.
Factors Affecting the Ductility of Bitumen
Not all bitumen behaves the same. Several factors influence its ductility.
1. Temperature
Higher temperature = more ductility
Lower temperature = less ductility
Cold climates can make bitumen brittle.
2. Aging
Over time, bitumen loses flexibility due to oxidation. This reduces ductility and increases cracking risk.
3. Composition of Bitumen
Bitumen is made of different hydrocarbons. The balance of these components affects flexibility.
4. Additives and Modifiers
Polymers and additives can improve ductility and performance.
Types of Bitumen Based on Ductility
Bitumen can be classified depending on how ductile it is.
1. High Ductility Bitumen
Used in highways and flexible pavements
Long-lasting and crack-resistant
2. Medium Ductility Bitumen
Suitable for moderate traffic areas
Balanced performance
3. Low Ductility Bitumen
Used in limited or specialized applications
More prone to cracking
Ductility vs Other Bitumen Properties
Ductility is important, but it works together with other properties.
1. Penetration
Measures hardness
Soft bitumen = higher penetration
Hard bitumen = lower penetration
2. Softening Point
Indicates temperature resistance
Higher softening point = better heat resistance
3. Viscosity
Shows flow behavior
Important during mixing and application
Why Ductility Stands Out
Unlike other properties, ductility directly affects how bitumen handles stress and movement.
Real-Life Applications of Ductility of Bitumen
1. Road Construction
Flexible roads depend on high ductility bitumen to prevent cracks and potholes.
2. Roofing Materials
Bitumen sheets must stretch without tearing to protect buildings.
3. Waterproofing Systems
Used in basements, tunnels, and bridges where flexibility is critical.
4. Industrial Uses
Used in insulation and sealing applications where movement is expected.
How to Improve the Ductility of Bitumen
If bitumen lacks ductility, it can be improved using modern techniques.
1. Polymer Modification
Adding polymers increases flexibility and strength.
2. Proper Storage
Avoid exposure to air and sunlight to prevent aging.
3. Temperature Control
Heating bitumen properly during use helps maintain ductility.
4. Use of Quality Materials
Sourcing from reliable suppliers ensures consistent performance. Companies like Basekim provide high-quality bitumen suitable for demanding applications.
Common Problems Due to Low Ductility
Low ductility can cause serious issues in construction.
1. Cracking
The most common problem, especially in cold weather.
2. Reduced Lifespan
Structures fail earlier than expected.
3. Water Damage
Cracks allow water to seep in, causing further damage.
4. Increased Maintenance Costs
Frequent repairs are needed, raising costs over time.
Advantages of High Ductility Bitumen
Longer lifespan
Better resistance to stress
Improved safety on roads
Lower maintenance costs
Stronger waterproofing
High ductility bitumen is always a better long-term investment.
Quick Comparison Table
| Property | High Ductility Bitumen | Low Ductility Bitumen |
|---|---|---|
| Flexibility | Excellent | Poor |
| Crack Resistance | High | Low |
| Durability | Long-lasting | Short lifespan |
| Cost Efficiency | Better over time | Expensive maintenance |
FAQs About Ductility of Bitumen
1. What does ductility of bitumen mean?
It means how much bitumen can stretch before breaking.
2. Why is ductility important for roads?
It prevents cracks and improves road lifespan.
3. How is ductility measured?
By stretching a sample and measuring the distance before it breaks.
4. What is a good ductility value?
Generally, above 50 cm is considered acceptable.
5. Can ductility be improved?
Yes, using additives and proper handling methods.
6. What happens if ductility is low?
The bitumen becomes brittle and cracks easily.
Conclusion
The ductility of bitumen is one of the most important properties that determines how well it performs in real-world conditions. It directly affects flexibility, durability, and resistance to cracking. Whether it’s roads, roofs, or waterproofing systems, high ductility ensures longer life and better performance.
By understanding ductility, engineers and builders can make smarter decisions and avoid costly problems. Choosing the right type of bitumen and maintaining its quality can make a huge difference in the success of any project.
In simple words, if bitumen can stretch without breaking, it will last longer — and that’s exactly what good construction needs.
