Bentonite is one of the most essential materials in modern foundation engineering. If you are searching for “bentonite for piling,” “bentonite slurry,” or “bentonite diaphragm wall construction,” you are dealing with a material that plays a critical role in enabling safe and stable concrete operations in difficult soil conditions.
Bentonite is not used as a component inside concrete mix. Instead, it is used before and around the concrete process to stabilize soil, control groundwater, and ensure proper placement of structural concrete.
What is Bentonite and Why It Matters
Bentonite is a natural clay composed mainly of montmorillonite. Its key engineering properties include:
- High swelling capacity when mixed with water
- Ability to form a viscous slurry
- Strong sealing and low permeability behavior
These properties allow bentonite to act as a temporary support system in excavation and foundation works.

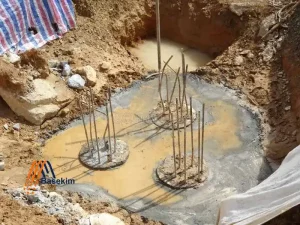

Bentonite Slurry for Piling Works
The most important and widely searched application is bentonite slurry in piling.
In deep foundation construction, boreholes are drilled into the ground. In unstable or water-bearing soils, the walls of the borehole can collapse before concrete is placed. Groundwater can also enter and disrupt the process.
To solve this, bentonite slurry is introduced into the borehole. This slurry:
- Applies hydrostatic pressure to stabilize the walls
- Forms a filter cake that reduces soil permeability
- Prevents collapse and water intrusion
After reinforcement is installed, concrete is poured into the borehole. The bentonite slurry is then displaced by the concrete.
This method makes deep piling possible in challenging ground conditions.
Bentonite in Diaphragm Wall Construction
Another key application is diaphragm wall construction.
This method is commonly used in:
- Underground structures
- Basements
- Metro and infrastructure projects
- Retaining walls
During excavation, trenches are filled with bentonite slurry. This prevents the trench walls from collapsing. Once excavation is complete, concrete is poured, replacing the slurry and forming a permanent wall.
Without bentonite, maintaining trench stability in soft or saturated soils would be extremely difficult.
Bentonite Cement Grout Applications
Bentonite is also used in grouting applications by mixing it with cement and water.
This mixture is used for:
- Filling underground voids
- Soil stabilization
- Sealing cracks and joints
- Preventing water leakage
Bentonite improves the workability of grout and reduces bleeding, resulting in better performance and sealing efficiency.
Bentonite for Waterproofing in Concrete Structures
Bentonite is widely used as a natural waterproofing material in construction.
Typical applications include:
- Foundation slabs
- Basement walls
- Underground structures
When exposed to water, bentonite expands significantly and fills gaps and pores. This creates a low-permeability barrier that prevents water from penetrating concrete structures.
This makes bentonite an effective and cost-efficient alternative to synthetic waterproofing systems.
Can Bentonite Be Used Inside Concrete?
Bentonite should not be used as part of structural concrete mix.
The reasons include:
- High water absorption
- Reduction in compressive strength
- Negative impact on cement hydration and bonding
For this reason, bentonite is used around the concrete process, not inside the concrete itself.
Key Advantages in Construction Projects
Bentonite provides several important benefits in construction:
- Stabilizes soil during excavation
- Prevents collapse of boreholes and trenches
- Controls groundwater inflow
- Enables safe deep foundation construction
- Improves grout performance
- Provides effective waterproofing
Best Type of Bentonite for Construction Applications
Selecting the correct type of bentonite is critical.
Sodium Bentonite
Sodium bentonite is the most suitable type for construction and foundation works.
It offers:
- High swelling capacity
- Strong viscosity
- Excellent sealing performance
It is recommended for:
- Piling slurry
- Diaphragm wall construction
- Waterproofing systems
- Grouting applications
Calcium Bentonite
Calcium bentonite has lower swelling and weaker slurry performance.
It is generally used in industrial applications and is not suitable for demanding foundation engineering works.
Conclusion
Bentonite is a key material in modern construction, particularly in foundation engineering. While it is not used inside concrete, it plays a vital role in enabling safe and efficient concrete placement in difficult ground conditions.
From piling and diaphragm walls to grouting and waterproofing, bentonite is essential for ensuring stability, durability, and long-term performance.
For best results, sodium bentonite is the preferred choice due to its superior swelling, viscosity, and sealing properties.
