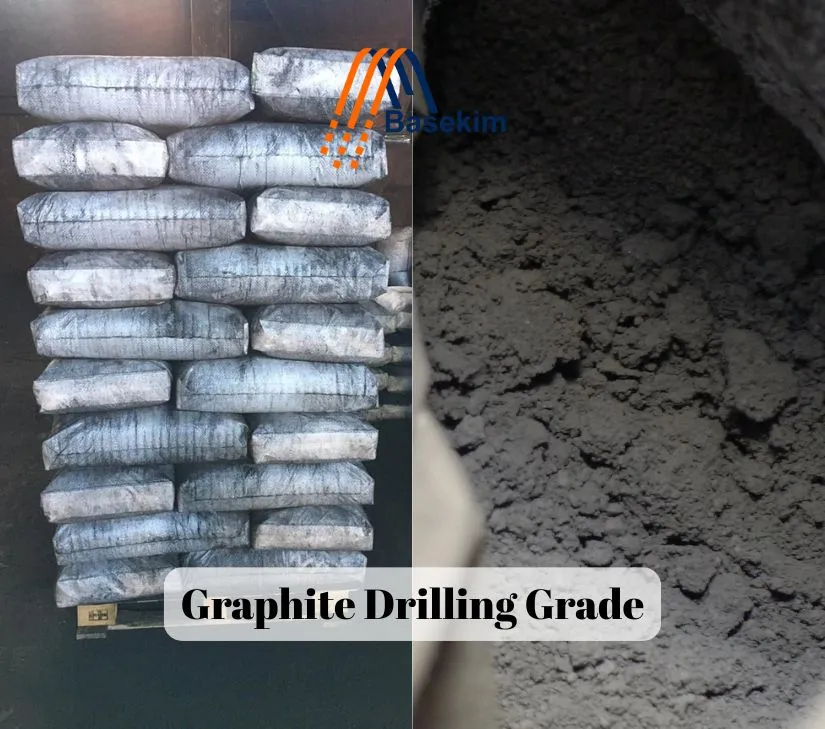

Graphite Drilling Grade for Drilling Fluids, Lubrication & Lost Circulation

Natural Graphite for Drilling Fluids, also known as Drilling Grade Graphite, Graphite Powder, Graphite LCM, Graphite Bridging Material, and Solid Graphite Lubricant, is a carbon-based drilling additive used to improve lubricity, reduce torque and drag, bridge formation openings, and help control seepage and lost circulation.

The naturally layered structure of graphite provides excellent solid lubrication, while its controlled particle size allows the material to physically bridge pores and micro-fractures within the formation.

For this reason, Graphite Powder for drilling can perform several functions within one drilling-fluid system: solid lubrication, torque and drag reduction, differential sticking prevention, bridging, seepage control, and lost circulation management.

BASEKIM supplies Fine and Medium-1 Drilling Grade Natural Graphite for oilfield and drilling applications.

What Is Natural Graphite Powder for Drilling Fluids?

Natural Graphite is a naturally occurring crystalline form of carbon (C) characterized by a layered structure, chemical stability, low friction, and insolubility in water.

When Natural Graphite is processed into a controlled Graphite Powder for drilling fluids, these properties make it particularly useful as both a solid drilling lubricant and a bridging material.

Unlike liquid lubricants, graphite remains as solid particles in the mud system.

These particles provide two primary functions:

Solid Lubrication:
Graphite creates a low-friction interface between the drill string, casing, and wellbore.

Bridging & Sealing:
Controlled graphite particles can bridge pores, fractures, and permeable zones where drilling fluid may otherwise enter the formation.

This combination makes Drilling Grade Graphite Powder useful in conventional drilling, directional wells, horizontal wells, and loss-control treatments.

What Is Drilling Grade Graphite Used For?

Graphite is not used only as a lubricant. Depending on its particle size, concentration, and drilling conditions, it can perform several functions in a drilling fluid system.

Graphite as a Solid Lubricant for Drilling Fluids

One of the main applications of Drilling Grade Graphite is friction reduction.

As graphite particles circulate with the drilling mud, their layered structure provides a low-friction solid interface between contacting surfaces.

This can help:

• Reduce rotary torque
• Reduce drill-string drag
• Improve drill-string movement
• Facilitate tripping
• Reduce metal-to-formation friction
• Minimize mechanical sticking tendency

For this reason, the product is commonly referred to as Graphite Drilling Lubricant, Solid Graphite Lubricant, or Graphite Lubricant for Drilling Mud.

Graphite LCM for Lost Circulation Control

Graphite LCM refers to graphite used as part of a Lost Circulation Material system.

Lost circulation occurs when drilling fluid escapes from the wellbore into fractures, pores, or highly permeable formations.

Graphite particles can enter these openings and create a physical bridging structure that helps restrict further mud invasion.

Graphite Lost Circulation Material can therefore be considered for:

• Seepage losses
• Partial lost circulation
• Naturally fractured formations
• Permeable formations
• Preventive LCM treatments
• LCM pills and spotting treatments

For more severe loss zones, Graphite LCM may be incorporated into a treatment containing other granular, flaky, or fibrous lost circulation materials.

Graphite Bridging Agent for Pores & Micro-Fractures

Another important function of Natural Graphite in drilling mud is particle bridging.

Particle size determines how effectively a bridging material interacts with different formation openings.

Fine graphite particles can enter and seal smaller pores and micro-fractures, while relatively larger particles provide bridging across wider openings.

Selecting the correct Graphite Particle Size Distribution (PSD) is therefore important for effective formation sealing.

This is why BASEKIM supplies more than one particle-size grade for drilling applications.

Graphite for Torque and Drag Reduction

Torque and drag are particularly important in:

• Horizontal wells
• Directional drilling
• Extended-reach wells
• High-angle wells
• Long drilling intervals

In these conditions, increased drill-string contact with the wellbore can generate significant friction.

Adding a Graphite Lubricant to drilling mud can help lower the coefficient of friction and improve drill-string mobility.

Graphite for Differential Sticking Prevention

Differential sticking may occur when the drill string is pressed against a permeable formation under differential pressure.

Graphite can contribute to sticking prevention through two mechanisms:

Lubrication helps reduce friction between the drill string and wellbore.

Bridging and sealing can help limit drilling-fluid invasion into permeable formations.

For this reason, Drilling Graphite may be incorporated into drilling-fluid programs where differential sticking is a concern.

Graphite for Wellbore Strengthening & Formation Sealing

Controlled-size graphite particles can also be used as part of wellbore strengthening and preventive loss-control programs.

The particles help bridge small formation openings and reduce fluid invasion into weak, porous, or naturally fractured formations.

Graphite may therefore complement other wellbore strengthening materials and LCM additives used in drilling-fluid formulations.

How Does Graphite Work in Drilling Mud?

The performance of Graphite Powder in drilling fluids is based mainly on its physical structure and particle-size distribution.

Lubrication Mechanism of Natural Graphite

Graphite consists of layers of carbon atoms.

These layers can slide across one another with relatively low resistance, giving graphite its characteristic lubricating properties.

When dispersed in drilling mud, graphite particles help create a solid lubricating layer between surfaces experiencing mechanical contact.

Bridging Mechanism of Graphite LCM

When drilling fluid encounters a permeable or fractured formation, appropriately sized graphite particles can enter the openings.

Particles begin to bridge across the opening while smaller particles help fill the remaining void spaces.

This creates a physical barrier that can reduce further drilling-fluid invasion.

The effectiveness of this mechanism depends heavily on selecting the appropriate Graphite Particle Size for the formation.

How to Use Graphite Powder in Drilling Fluids

Drilling Graphite Powder is normally introduced gradually through the mud hopper or suitable mixing system while maintaining adequate circulation and agitation.

The method of treatment depends on the intended application.

How to Use Graphite as a Drilling Lubricant

For routine lubricity, torque, and drag control, graphite can be gradually incorporated into the active drilling-fluid system.

Adequate circulation should be maintained to achieve uniform distribution throughout the mud.

How to Use Graphite as Lost Circulation Material

For seepage or lost circulation, a higher concentration of Graphite LCM may be prepared as an LCM pill or spotting treatment.

The selected grade should correspond to the expected formation opening and loss severity.

The final treatment design should consider:

• Formation characteristics
• Fracture or pore size
• Mud type
• Well geometry
• Severity of losses
• Required lubricity
• Other LCM additives in the system

Recommended Graphite Dosage for Drilling Mud

Typical treatment ranges are:

These values are general application guidelines. Final Graphite dosage in drilling mud should be determined by the drilling-fluid engineer according to actual well conditions.

Fine vs Medium Graphite for Drilling Applications

BASEKIM supplies Fine Graphite and Medium-1 Graphite to provide different particle distributions for drilling applications.

Fine Graphite Powder for Lubrication & Micro-Fracture Sealing

Fine Grade Natural Graphite is primarily suitable for:

• Drilling-fluid lubrication
• Torque and drag reduction
• Micro-fracture sealing
• Fine formation bridging
• Preventive loss control
• Differential sticking reduction

The finer particle distribution makes this grade suitable where both lubrication and fine sealing are required.

Medium Graphite LCM for Bridging & Lost Circulation

Medium-1 Graphite provides a relatively coarser particle-size distribution.

Typical applications include:

• Formation bridging
• Seepage-loss control
• Partial lost circulation
• Larger formation openings
• LCM treatments
• Wellbore strengthening

Grade selection should be based on the expected formation openings and required treatment performance.

Drilling Grade Natural Graphite Technical Specifications

BASEKIM supplies controlled-quality Natural Graphite Powder for drilling applications with the following typical specifications:

Graphite Particle Size Distribution – Fine & Medium Grades

Particle-size control is an important parameter when selecting Graphite Bridging Material or Graphite LCM.

BASEKIM currently supplies the following particle distributions:

The appropriate grade can be selected according to the required lubricity, bridging, formation sealing, and lost circulation performance.

Graphite for WBM, OBM & SBM Drilling Fluid Systems

Natural Graphite Drilling Additive can be used in different drilling-fluid systems, including:

Graphite for Water-Based Mud (WBM)

Natural Graphite can be incorporated into WBM systems for lubricity, bridging, seepage control, and LCM applications.

Graphite for Oil-Based Mud (OBM)

Graphite can also provide solid lubrication and bridging functions in compatible oil-based drilling-fluid formulations.

Graphite for Synthetic-Based Mud (SBM)

Subject to formulation compatibility, graphite can be incorporated into synthetic-based systems where additional solid lubrication or bridging performance is required.

Compatibility with Other Drilling Fluid Additives

Drilling Grade Natural Graphite is generally compatible with commonly used drilling-fluid materials, including:

Bentonite • Barite • Calcium Carbonate • PAC • CMC • Xanthan Gum • Lignite • Gilsonite • Sulphonated Asphalt • Mica • Conventional LCM Materials

Laboratory compatibility testing is recommended for specialized drilling-fluid formulations.

Natural Graphite Supplier & Exporter from Turkey

After selecting the appropriate product and particle-size grade, reliable supply becomes equally important for continuous drilling operations.

BASEKIM is a Turkish supplier and exporter of Natural Graphite, Graphite Powder, Drilling Grade Graphite and Graphite LCM for oilfield and drilling applications.

We work with drilling contractors, drilling-fluid companies, oilfield service companies, chemical distributors and project procurement teams requiring regular or project-based supply.

BASEKIM supplies drilling materials from Türkiye with technical documentation, export packaging and international logistics support.

Drilling Graphite Supply to GCC, Middle East & Africa

BASEKIM supplies and exports Natural Graphite for drilling fluids to major drilling markets across the region.

Our supply network covers:

GCC: Saudi Arabia, United Arab Emirates, Oman, Qatar, Kuwait and Bahrain

North Africa: Egypt, Algeria, Tunisia, Libya and Morocco

Middle East: Iraq and other regional drilling markets

Africa: East Africa, West Africa and other oil, gas, water-well and mineral drilling markets

Depending on destination, quantity and project requirements, shipments can be arranged through sea freight, road transportation or multimodal logistics from Türkiye.

Why Source Drilling Grade Graphite from BASEKIM?

For international drilling projects, BASEKIM provides:

• Natural Graphite for drilling applications
• Fine and Medium-1 particle-size grades
• Controlled Particle Size Distribution
• Consistent Carbon, Ash and Moisture specifications
• Drilling and LCM grade supply
• 25 kg export-ready packaging
• TDS and SDS/MSDS
• Batch Certificate of Analysis (COA)
• Bulk and project-based quantities
• International freight support
• Direct supply from Türkiye

Natural Graphite Packaging & Technical Documentation

Standard Packaging: 25 kg Multi-Wall Kraft Paper Bags

Available technical and commercial documentation includes:

Technical Data Sheet (TDS)
Safety Data Sheet (SDS/MSDS)
Certificate of Analysis (COA)
Commercial & Export Documentation

Buy Natural Graphite, Graphite Powder & Graphite LCM from Turkey

If your project requires Natural Graphite for drilling fluids, Drilling Grade Graphite Powder, Graphite LCM, Graphite Bridging Material, or Solid Graphite Lubricant, BASEKIM can support both technical product selection and international supply.

For quotation, send us your:

Required Grade • Quantity • Application • Destination

Our team can provide the relevant TDS, COA, commercial quotation, packing details and available freight options.
