How Much Barite Is Needed to Increase Mud Weight?

The amount of barite required to increase drilling mud weight depends mainly on four parameters:

• Initial mud weight

• Required final mud weight

• Active drilling fluid volume

• Specific gravity of the barite

For conventional API Barite 4.2, a commonly used field equation is:

Barite required (lb/bbl) = 1,470 × (W₂ − W₁) / (35 − W₂)

Where:

W₁ = initial mud weight, ppg
W₂ = desired mud weight, ppg
35 ppg ≈ density of 4.2 SG barite
1,470 lb/bbl ≈ mass of one barrel of solid Barite 4.2

This equation is based on a mass-and-volume balance. It accounts not only for the additional mass introduced by barite, but also for the additional solids volume added to the drilling fluid.

That second point is critical.

Adding 10 MT of barite does not simply add 10 MT to the existing mud while keeping the fluid volume constant. The barite itself occupies volume, so the final drilling-fluid volume increases during a conventional weight-up operation.

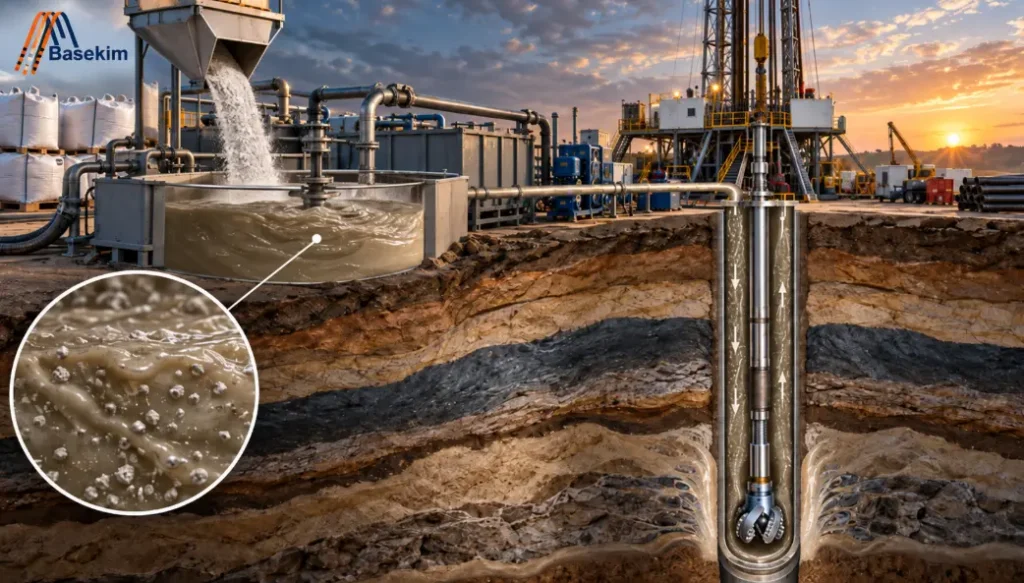

Why Is Barite Added to Drilling Mud?

Barite, primarily composed of barium sulfate, is the most widely used weighting agent in drilling fluids.

Its main function is to increase drilling-fluid density without requiring an excessive volume of solids.

Mud density is one of the parameters controlling the hydrostatic pressure exerted by the drilling-fluid column.

In field units:

Hydrostatic Pressure (psi) = 0.052 × Mud Weight (ppg) × TVD (ft)

where TVD is the true vertical depth.

For example, a 12.0 ppg drilling fluid at a TVD of 10,000 ft produces approximately:

0.052 × 12 × 10,000 = 6,240 psi

If the required wellbore pressure increases, the mud engineer may need to increase mud density.

One of the most common methods is therefore to weight up the drilling mud with barite.

Barite is particularly suitable because of its relatively high specific gravity and its general chemical inertness toward many drilling-fluid additives. It is widely used in both water-based and non-aqueous drilling-fluid systems.

Why API Barite 4.2 Is Commonly Used for Mud Weighting

The specific gravity of the weighting material directly affects how much solid must be introduced into the fluid.

API Specification 13A recognizes drilling grade barite with minimum densities of approximately:

For both grades, API specifications also address parameters such as water-soluble alkaline-earth metals and particle-size limits. API notes that Barite 4.1 may not be appropriate for some higher mud-weight applications.

For a nominal 4.2 SG barite:

Density ≈ 4.2 × 8.33 = 35.0 lb/gal

Since one oilfield barrel contains 42 US gallons:

35 × 42 ≈ 1,470 lb/bbl

This is where the familiar 35 and 1,470 constants in the barite weight-up formula originate.

They are not arbitrary drilling constants.

They come directly from the density and barrel-volume relationships of the weighting material.

Engineering Basis of the Barite Weight-Up Formula

Consider an initial drilling-fluid volume:

V₁

with initial density:

W₁

Barite with density:

Wb

is added until the final fluid reaches:

W₂

The mass balance is:

V₁W₁ + VbWb = (V₁ + Vb)W₂

where:

Vb = true volume of added barite.

Rearranging:

Vb(Wb − W₂) = V₁(W₂ − W₁)

Therefore:

Vb = V₁ × (W₂ − W₁) / (Wb − W₂)

For Barite 4.2:

Wb ≈ 35 ppg

Therefore:

Vb = V₁ × (W₂ − W₁) / (35 − W₂)

For one original barrel of mud, the mass of the added barite becomes:

Barite lb/bbl = 1,470 × (W₂ − W₁) / (35 − W₂)

This is the standard form commonly used for barite weight-up calculations in drilling fluids.

Barite Weight-Up Calculation Example

Assume a drilling-fluid system has:

The required barite concentration is:

Barite = 1,470 × (14.0 − 10.5) / (35 − 14.0)

Therefore:

Barite = 1,470 × 3.5 / 21

Barite = 245 lb/bbl

For a 500 bbl active system:

245 × 500 = 122,500 lb

Converting to metric tonnes:

122,500 × 0.453592 / 1,000 ≈ 55.6 MT

Result

Approximately:

55.6 MT of Barite 4.2

is theoretically required to increase 500 bbl of drilling mud from 10.5 ppg to 14.0 ppg.

Do Not Ignore the Volume Increase

This is one of the most commonly overlooked parts of a mud weight-up calculation.

The calculated 55.6 MT of barite occupies physical volume.

For Barite 4.2:

True solids volume ≈ Mass / Density

Using field units:

122,500 lb / 1,470 lb/bbl ≈ 83.3 bbl

So the theoretical final system volume becomes approximately:

500 + 83.3 = 583.3 bbl

This result follows directly from the material balance.

Therefore, a mud engineer should distinguish carefully between:

Initial active volume

and

Final volume after weighting up

This can become operationally important when the pit system has limited available capacity.

How Many 25 kg Bags or 1 MT Jumbo Bags Are Required?

For the example above:

Required Barite = approximately 55.6 MT

For 1 MT jumbo bags:

≈ 55.6 jumbo bags

Operationally, the required shipment would therefore need to cover at least the calculated requirement plus whatever operational contingency the drilling-fluid program specifies.

For 25 kg bags:

55,600 / 25 ≈ 2,224 bags

The engineering requirement should always be distinguished from the commercial shipment quantity.

Additional inventory may be required for circulating-system losses, drilled-hole volume, reserve mud, dilution, treatment changes or later well sections.

Why You Should Use Actual Barite Specific Gravity

The familiar 1,470 / 35 formula assumes approximately 4.2 SG barite.

It should not automatically be used for every weighting material.

If actual weighting-material density differs, the general material-balance equation should be used.

For a weighting material with specific gravity SGb:

Weighting-material density in ppg ≈ 8.33 × SGb

The general equation becomes:

Weighting material required (lb/bbl) = 350 × SGb × (W₂ − W₁) / [(8.33 × SGb) − W₂]

The exact calculation can also be performed directly through mass and volume balance.

This matters when comparing:

Barite 4.1

with

Barite 4.2

or when evaluating higher-density weighting materials such as hematite.

A lower-density weighting material normally requires more solids volume to achieve the same final fluid density.

That additional solids loading may also influence rheological behavior.

Why More Barite Is Not Always Better

Increasing mud density is not simply a matter of adding the maximum possible amount of barite.

Every additional solid introduced into the system can influence drilling-fluid properties.

At high weighting-material concentrations, engineers pay particular attention to:

Plastic viscosity

Yield point

Low-shear rheology

Equivalent circulating density

Pump pressure

Solids loading

and especially:

barite sag

Research and field experience show that barite can present challenges including increased plastic viscosity and sagging under certain drilling-fluid conditions.

The practical objective is therefore not:

“Add as much barite as possible.”

It is:

Achieve the required density while maintaining acceptable rheology, suspension stability and hydraulics.

What Is Barite Sag?

Barite sag is the undesirable settling or redistribution of weighting material within the drilling fluid.

If sufficient barite settles, mud density may no longer remain uniform throughout the circulating system or wellbore.

This is particularly important in high-density fluids, static conditions and certain deviated-well environments.

That is why the calculated quantity of barite is only one part of a proper drilling-fluid weight-up program.

The final fluid must also maintain sufficient suspension characteristics.

Particle-size distribution, fluid rheology, temperature, inclination, shear history and fluid formulation can all influence weighting-material suspension.

API 13A Parameters to Check Before Buying Drilling Barite

The words “4.2 SG” alone are not enough to fully describe API drilling-grade barite.

For Barite 4.2, API Specification 13A includes key physical and chemical requirements such as:

These particle-size limits are important because drilling barite should not contain excessive coarse material or an uncontrolled proportion of very fine particles.

API 13A applies essentially the same additional specifications to the 4.1 and 4.2 grades, with density being the principal grade distinction.

For procurement, a drilling company should therefore evaluate the batch COA, not only a generic product description.

Barite Weight-Up Calculator

Before calculating the required quantity of barite, collect the following field data:

Initial Mud Weight: ___ ppg
Target Mud Weight: ___ ppg
Active Mud Volume: ___ bbl
Barite Specific Gravity: ___

For Barite 4.2:

Barite required (lb/bbl) = 1,470 × (Target MW − Initial MW) / (35 − Target MW)

Then:

Total Barite (lb) = Barite lb/bbl × Active Mud Volume

And:

Total Barite (MT) = Total Barite lb × 0.453592 / 1,000

This provides the theoretical material-balance requirement.

Actual field treatment should be based on measured system volumes and mud weights and verified during the weight-up process.

Common Mistakes in Barite Weight-Up Calculations

One of the most important errors is using an estimated pit volume instead of the actual active circulating volume.

Another is using the nominal barite grade while ignoring its actual measured density.

Engineers should also avoid treating the final system volume as identical to the initial volume.

A conventional weight-up calculation introduces both mass and volume.

Finally, the theoretical answer should not replace field verification.

Mud density should be measured throughout the operation, and the treatment may need adjustment for dilution, losses, new hole volume, solids contamination or other changes occurring in the active system.

FAQ: Barite for Drilling and Mud Weight Calculation

How much barite is required to increase mud weight by 1 ppg?

There is no single fixed number.

The required amount depends on the initial mud weight and especially the target mud weight because the added barite increases both mass and fluid-system volume.

For Barite 4.2:

Barite lb/bbl = 1,470 × (W₂ − W₁) / (35 − W₂)

Why is 1,470 used in the barite formula?

A 4.2 SG solid has an approximate density of 35 lb/gal.

One oilfield barrel contains 42 gal.

Therefore:

35 × 42 ≈ 1,470 lb/bbl

Why is 35 used in the barite weight-up formula?

Because API Barite 4.2 has an approximate density of:

4.2 × 8.33 ≈ 35 lb/gal

Can Barite 4.1 and Barite 4.2 use the same calculation?

The same material-balance principle applies, but the density of the weighting material should be changed.

Using the standard 35 ppg / 1,470 lb/bbl constants assumes approximately 4.2 SG barite.

API notes that the lower-density 4.1 grade can require changes in engineering calculations and may be less appropriate for some higher mud-weight applications.

Does adding barite increase drilling-fluid volume?

Yes.

Barite occupies physical volume.

A correct weight-up calculation therefore accounts for the increase in system volume after barite addition.

Is BaSO₄ percentage enough to determine drilling-grade barite quality?

No.

BaSO₄ composition can be useful information, but API drilling-barite qualification also considers density, soluble alkaline-earth metals and specified particle-size fractions.

Procurement decisions should therefore evaluate the appropriate specification and batch test results rather than relying only on a BaSO₄ percentage.

What information should be requested before purchasing drilling barite?

For a drilling project, useful documentation includes the product TDS and a recent batch-specific COA showing the relevant physical and chemical properties.

The required grade, quantity, packaging, destination and project requirements should also be defined before procurement.

API 4.2 Barite for Drilling Projects

Selecting a drilling weighting material should involve more than comparing price per metric tonne.

A lower-cost material that introduces excessive solids, inconsistent density or unsuitable particle-size characteristics can have consequences far beyond the initial material cost.

For drilling-fluid applications, evaluate the actual grade, density, particle-size specification, batch consistency and supporting technical documentation.
